Debug Component

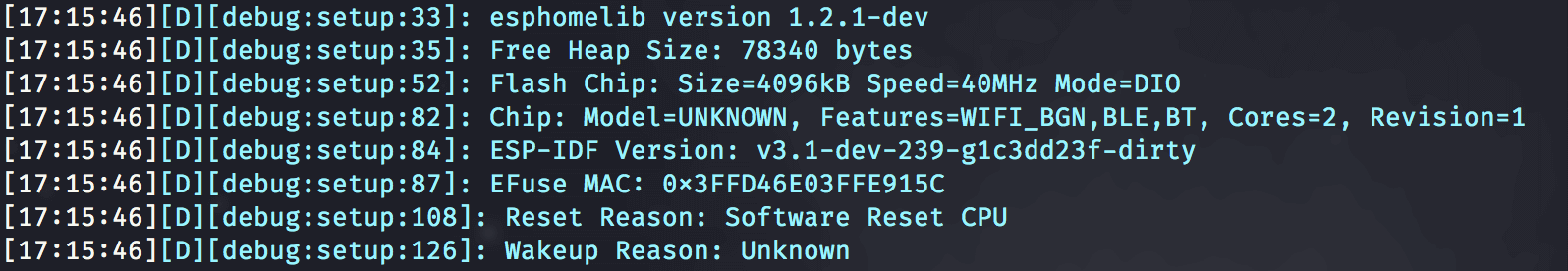

The debug component can be used to debug problems with ESPHome. At startup, it prints a bunch of useful information like reset reason, free heap size, ESPHome version and so on. It also allows you to get the same information as a text sensor, and to monitor the state of the ESP heap memory (free space, maximum free block size and fragmentation level) and the main-loop timing.

# Example configuration entry
debug:
  update_interval: 5s

text_sensor:
  - platform: debug
    device:
      name: "Device Info"
    reset_reason:
      name: "Reset Reason"

sensor:
  - platform: debug
    free:
      name: "Heap Free"
    fragmentation:
      name: "Heap Fragmentation"
    block:
      name: "Heap Max Block"
    loop_time:
      name: "Loop Time"
    psram:
      name: "Free PSRAM"
    cpu_frequency:
      name: "CPU Frequency"

# Logger must be at least debug (default)
logger:
  level: debug

Text Sensor

Configuration variables:

• device (Optional): Reports the following device information:

  • ESPHome Version

  • Free heap size at startup

  • Flash chip size, speed and mode

  • ESP32:

    • Chip model, cores, revision
    • Chip features (BLE / BT / WiFi_BGN / EMB_FLASH / EMB_PSRAM / …)
    • ESP-IDF version
    • EFuse MAC
    • Reset reason
    • Wakeup reason

  • ESP8266:

    • Chip id, frequency
    • Flash id
    • SDK, Core & Boot versions
    • Reset reason & information

  Accepts all options from Text Sensor.

• reset_reason (Optional): Reports the last reboot reason in a human-readable form. Accepts all options from Text Sensor.

Sensor

Configuration variables:

• free (Optional): Reports the free heap size in bytes. All options from Sensor.

• fragmentation (Optional): Reports the fragmentation metric of the heap (0% is clean, more than ~50% is not harmless). Only available on ESP8266 with Arduino 2.5.2+. All options from Sensor.

• block (Optional): Reports the largest contiguous free RAM block on the heap in bytes. All options from Sensor.

• loop_time (Optional): Reports the longest time between successive iterations of the main loop. All options from Sensor.

• psram (Optional): Reports the free PSRAM in bytes. Only available on ESP32. All options from Sensor.

• cpu_frequency (Optional): Reports the CPU frequency in Hz. All options from Sensor.
