EMC2101 Fan Controller and Temperature sensor

The emc2101 component allows you to control a cooling fan from ESPHome (datasheet External link ). It also provides temperature sensors and a tachometer. The fan can be controlled either by a PWM signal or by outputing a DC voltage using its DAC.

The I²C Bus is required to be set up in your configuration for this sensor to work.

Note

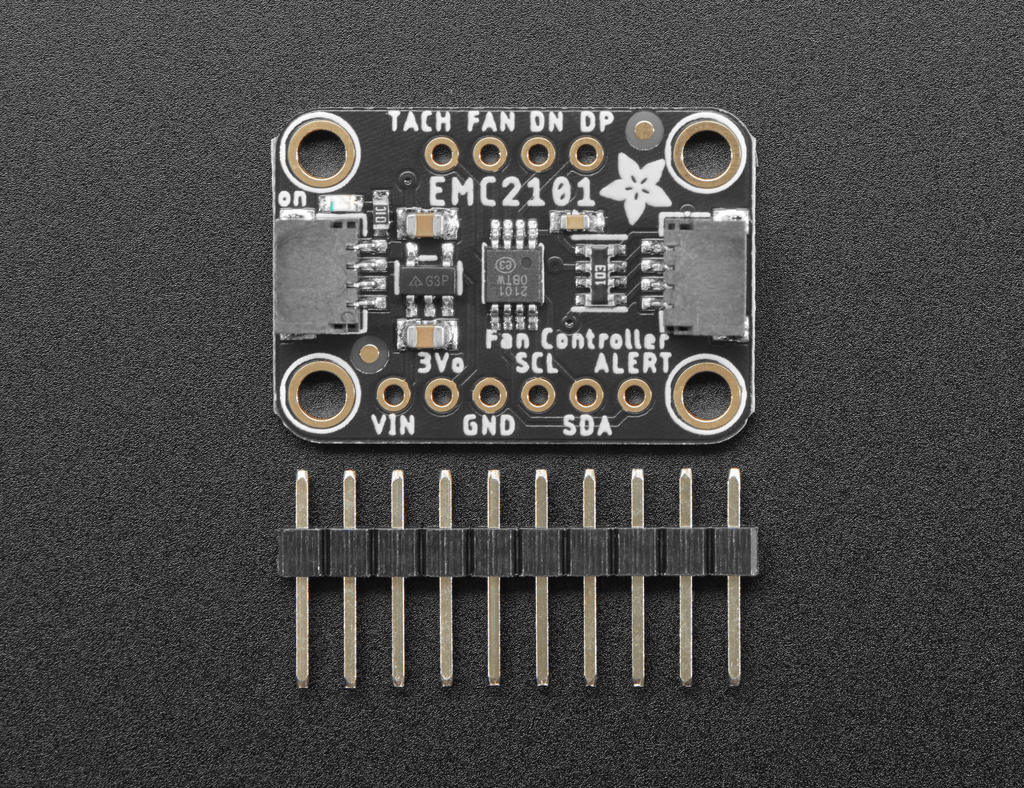

Original image at https://learn.adafruit.com/assets/97827 External link

created by by user Bryan Siepert External link

under Creative Commons BY-SA 3.0 External link

and modified for this documentation.

EMC2101 Component

# Example configuration entry
emc2101:
  pwm:
    resolution: 8

Configuration variables:

address (Optional, int): Manually specify the I²C address of the sensor. Defaults to 0x4C.
inverted (Optional, boolean): Inverts the output so 0 means 100% duty cycle and 1 means 0%. Defaults to false.
pwm (Optional): Enable PWM output.
- resolution (Optional, int): Determines effective resolution and the frequency of the PWM signal. Defaults to 23.
- divider (Optional, int): Value for the frequency divider. Defaults to 1.
dac (Optional): Enable DAC output.
- conversion_rate (Optional, string): The number of digital to analog conversions perfomed per second. One of 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 8, 16, 32. Defaults to 16.

The PWM signal frequency is determined by the following formula:

$$ \text{PWM Frequency} = \frac{360KHz}{2 \times resolution \times divider} $$ And the PWM resolution, the steps in the duty cycle, is calculated by the following formula:

$$ \text{PWM resolution} = \frac{100\%}{2 \times resolution} $$ So, with the default values the PWM signal will have a frequency of 7.83KHz and a resolution of 2.17%. The maximum resolution value is 31 which will configure a frequency of 5.81KHz with a resolution of 1.61%.

EMC2101 Output

output:
  - platform: emc2101
    id: fan_duty_cycle

Configuration variables:

id (Required, ID): The ID to use for code generation, and for reference by dependent components.

Note

When using the emc2101 output with a Speed Fan it is advised to configure the speed_count as twice the resolution so the number of speeds in the fan matches the number of steps in the fan controller.

EMC2101 Sensors

sensor:
  - platform: emc2101
    internal_temperature:
      id: internal_temperature_sensor
      name: "Internal Temperature Sensor"
    speed:
      id: speed_sensor
      name: "Speed Sensor"
    duty_cycle:
      id: duty_cycle_sensor
      name: "Duty Cycle Sensor"
    update_interval: 5s

Configuration variables:

internal_temperature (Optional): The internal temperature sensor. All options from Sensor.
external_temperature (Optional): The external temperature sensor. More accurate but it needs an additional transistor to be installed. All options from Sensor.
speed (Optional): The fan speed sensor in RPMs. All options from Sensor.
duty_cycle (Optional): Duty cycle sensor. All options from Sensor.
update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.
