Monochromatic Light

The monochromatic light platform creates a simple brightness-only light from an float output component.

# Example configuration entry
light:
  - platform: monochromatic

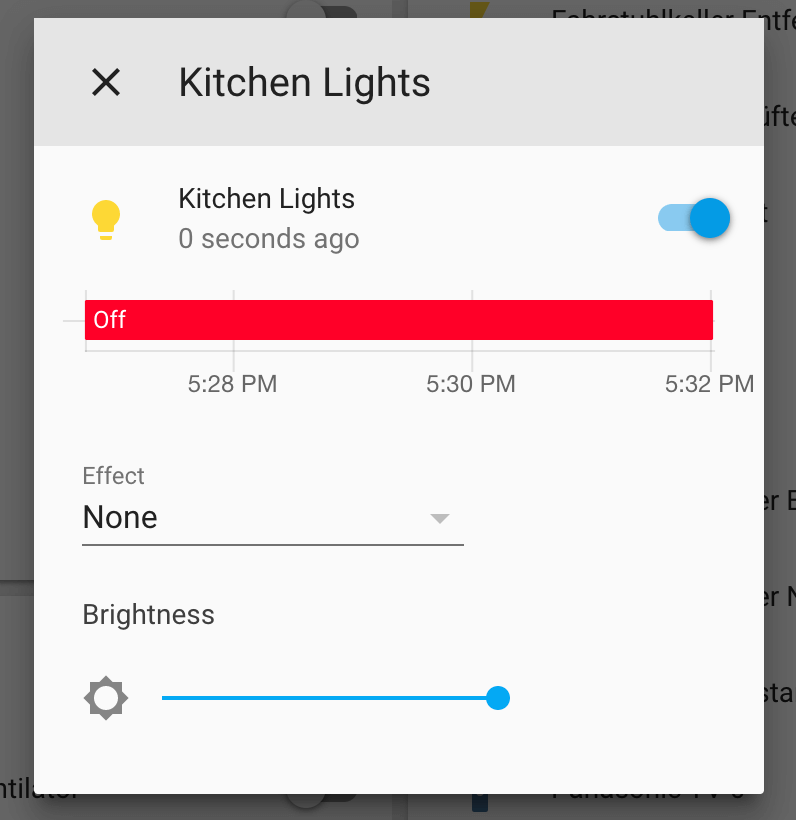

    name: "Kitchen Lights"
    output: output_component1

Configuration variables:

• output (Required, ID): The id of the float Output Component to use for this light.
• All other options from Light.
