RGB Light
The rgb light platform creates an RGB light from 3 float output components
(one for each color channel).
# Example configuration entry
light:
- platform: rgb

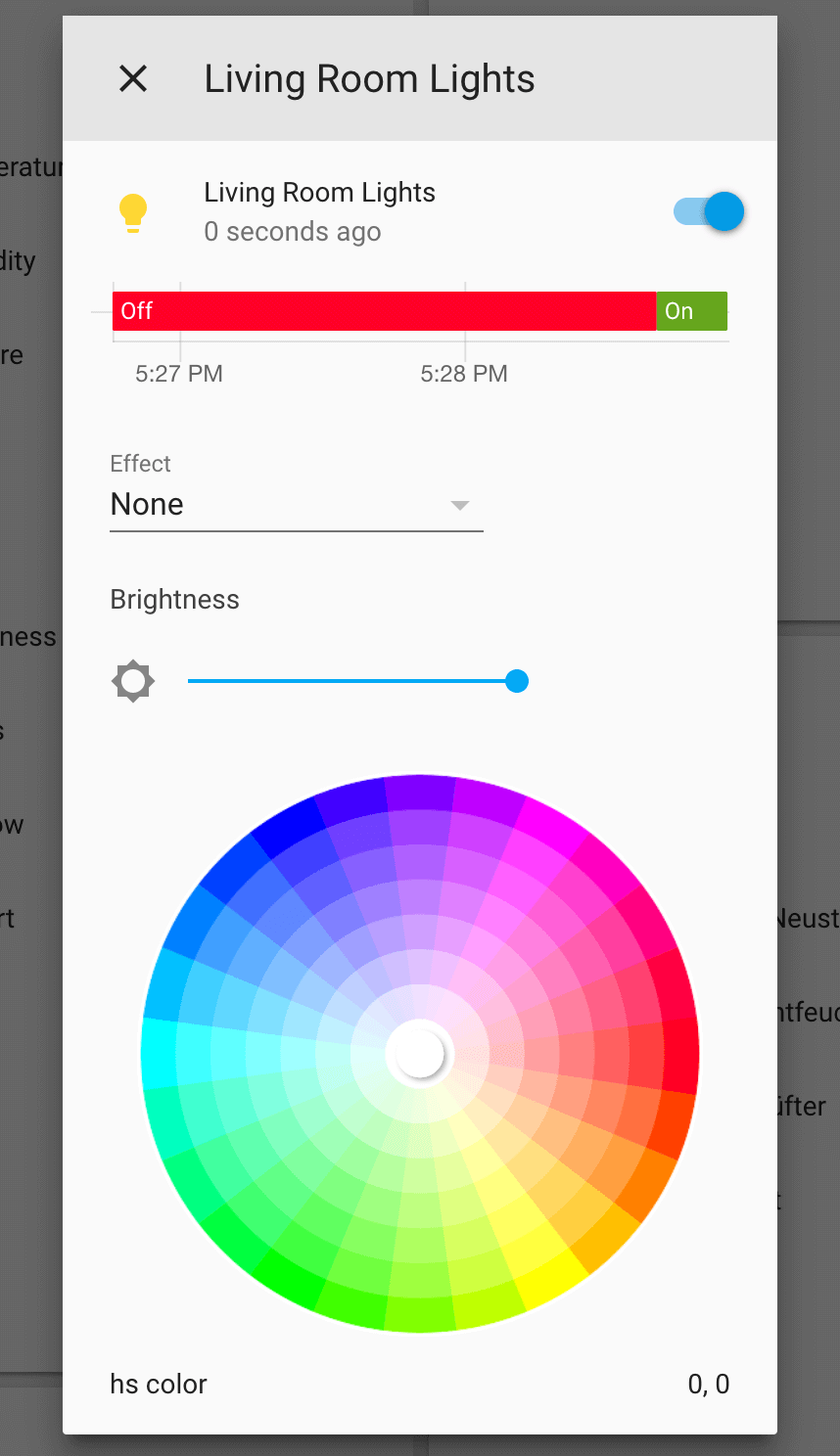

name: "Living Room Lights"
red: output_component1
green: output_component2
blue: output_component3Color Correction

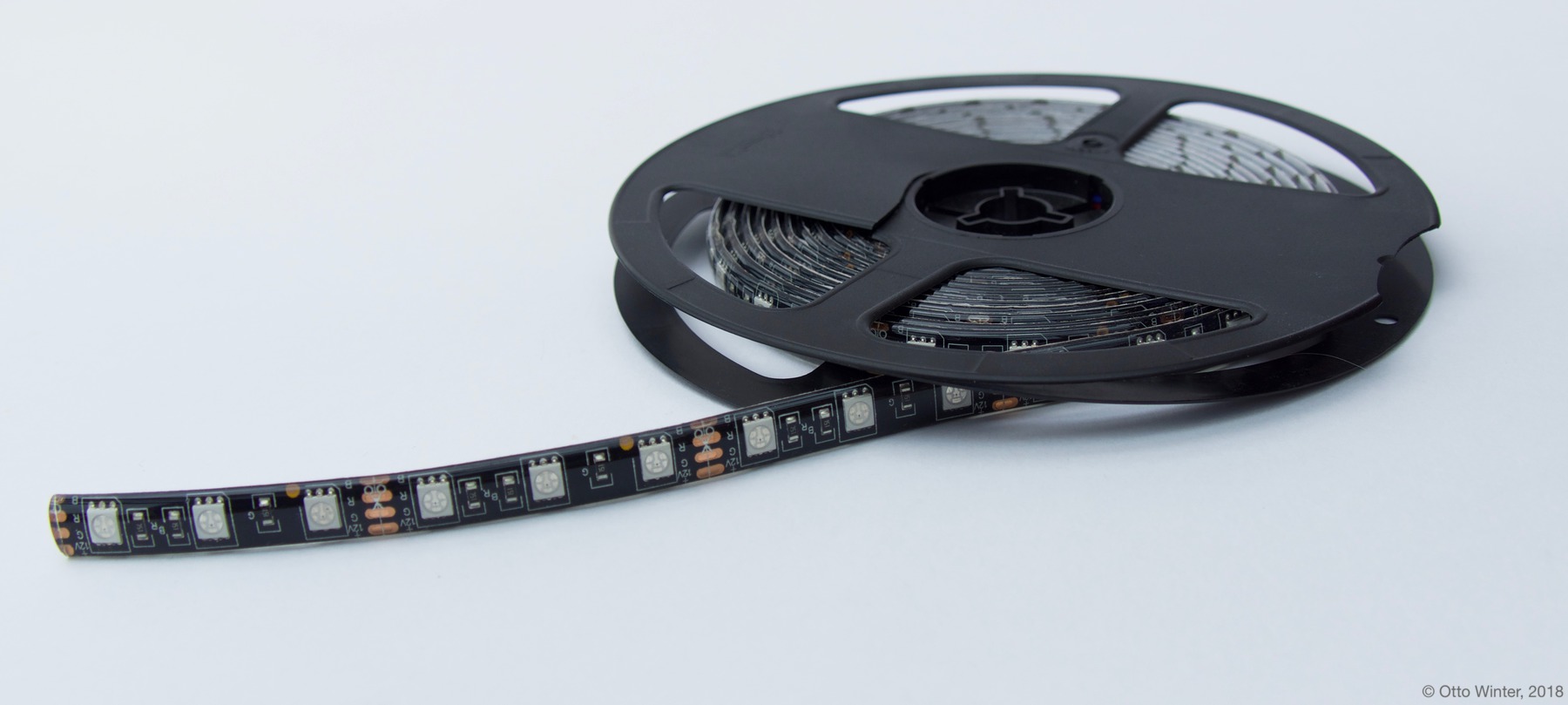

It is often favourable to calibrate/correct the color produced by an LED strip light as the perceived intensity of different colors will generally vary. This can be done by using max_power on individual output channels:
# Example configuration entry
light:
- platform: rgb
name: "Living Room Lights"
red: output_component1
green: output_component2
blue: output_component3
# Example output entry
output:
- platform: ...
id: output_component1
max_power: 80%
# Repeat for green and blue outputNote
Remember thatgamma_correct is enabled by default (γ=2.8), and you may want take it into account for the calibration. For instance if you command a light to 50% brightness and want it to be the new maximum: max_PWM_power = max_light_power^2.8 = 0.5^2.8 = 0.144, then you would set max_power to 14.4%.Configuration variables:
- red (Required, ID): The id of the float Output Component to use for the red channel.
- green (Required, ID): The id of the float Output Component to use for the green channel.
- blue (Required, ID): The id of the float Output Component to use for the blue channel.
- All other options from Light.
