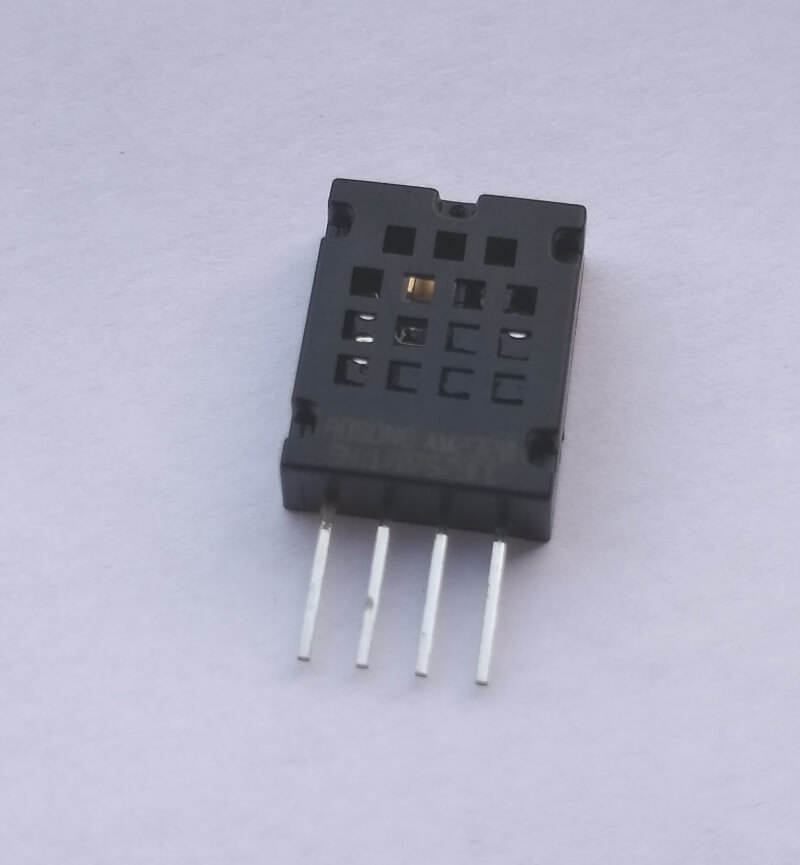

AM2320 Temperature+Humidity Sensor
The am2320 Temperature+Humidity sensor allows you to use your AM2320
(datasheet
) I²C-based sensor with ESPHome.
Note
Logs might include some warnings about receiving a NACK from the sensor. This is due to a wake call to the sensor which the sensor never acknowledges by design.# Example configuration entry
sensor:
- platform: am2320
temperature:
name: "Living Room Temperature"
humidity:
name: "Living Room Humidity"
update_interval: 60sConfiguration variables:
temperature (Required): The information for the temperature sensor.
- All options from Sensor.
humidity (Required): The information for the humidity sensor
- All options from Sensor.
update_interval (Optional, Time): The interval to check the sensor. Defaults to
60s.
