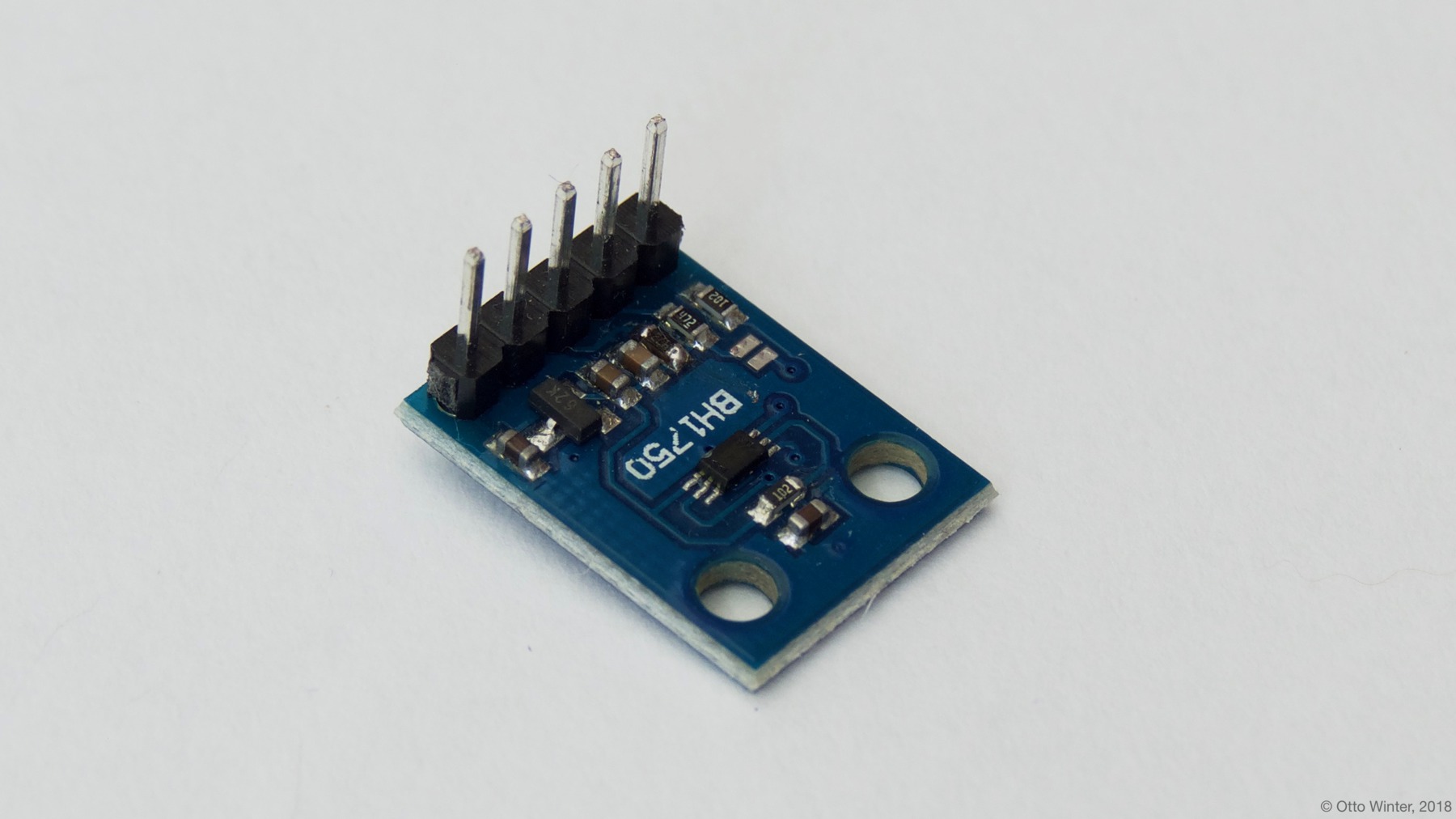

BH1750 Ambient Light Sensor
The bh1750 sensor platform allows you to use your BH1750
(datasheet
)
ambient light sensor with ESPHome. The I²C bus is required to be set up in
your configuration for this sensor to work.
# Example configuration entry
sensor:
- platform: bh1750
name: "BH1750 Illuminance"
address: 0x23
update_interval: 60sConfiguration variables:
- address (Optional, int): Manually specify the I²C address of the sensor.
Defaults to
0x23(address if address pin is pulled low). If the address pin is pulled high, the address is0x5C. - update_interval (Optional, Time): The interval to check the
sensor. Defaults to
60s. - All other options from Sensor.
