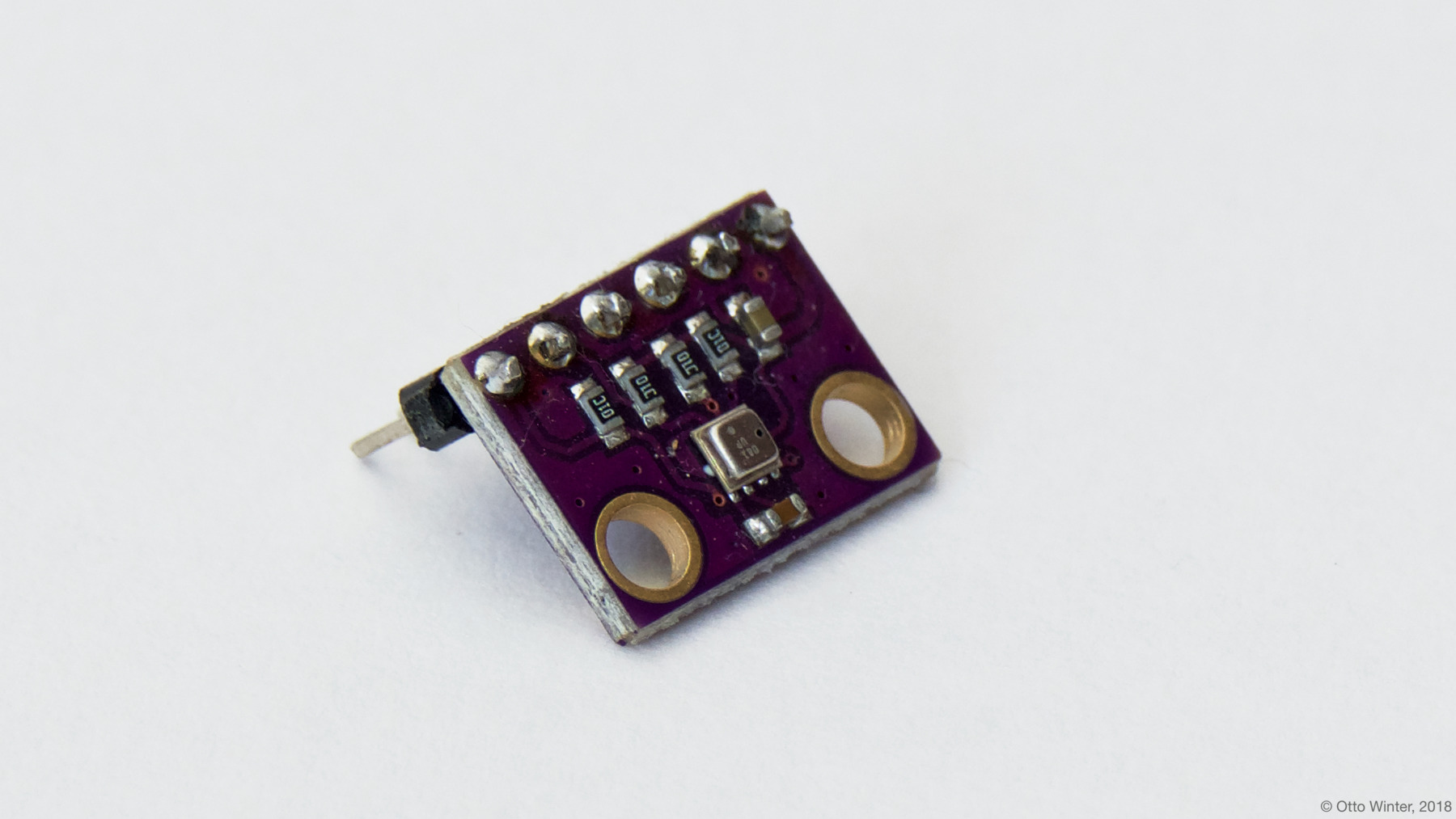

BME280 Temperature+Pressure+Humidity Sensor

The bme280 sensor platform allows you to use your BME280 (datasheet External link , Adafruit_) temperature, pressure and humidity sensors with ESPHome. The sensor is used in Forced Mode where measurement is performed and then the sensor returns to sleep mode until next measurement. The I²C or SPI is required to be set up in your configuration for this sensor to work.

Note: In I²C mode pulling CSB to 3V is recommended, in order to avoid [E][sensor.bme280:155]: Communication with BME280 failed! error. See the Connection diagram chapter in datasheet above.

Adafruit External link

# Example configuration entry I2C
sensor:
  - platform: bme280_i2c
    temperature:
      name: "BME280 Temperature"
    pressure:
      name: "BME280 Pressure"
    humidity:
      name: "BME280 Humidity"


# Example configuration entry SPI
sensor:
  - platform: bme280_spi
    temperature:
      name: "BME280 Temperature"
    pressure:
      name: "BME280 Pressure"
    humidity:
      name: "BME280 Humidity"
    cs_pin: GPIOXX

Configuration variables:

temperature (Optional): The information for the temperature sensor.
- oversampling (Optional): The oversampling parameter for the temperature sensor. See Oversampling Options.
- All other options from Sensor.
pressure (Optional): The information for the pressure sensor.
- oversampling (Optional): The oversampling parameter for the pressure sensor. See Oversampling Options.
- All other options from Sensor.
humidity (Optional): The information for the humidity sensor.
- oversampling (Optional): The oversampling parameter for the humidity sensor. See Oversampling Options.
- All other options from Sensor.
iir_filter (Optional): Set up an Infinite Impulse Response filter to increase accuracy. One of OFF, 2x, 4x, 16x. Defaults to OFF.
update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.

I²C Configuration variables:

address (Optional, int): Manually specify the I²C address of the sensor. Defaults to 0x77. Another address can be 0x76.

SPI Configuration variables:

cs_pin (Optional, Pin Schema): The CS pin of the BME280 sensor.

Oversampling Options

By default, the BME280 sensor measures each value 16 times when requesting a new value. You can, however, configure this amount. Possible oversampling values:

NONE (value is skipped)
1x
2x
4x
8x
16x (default)
