BMP085 Temperature+Pressure Sensor

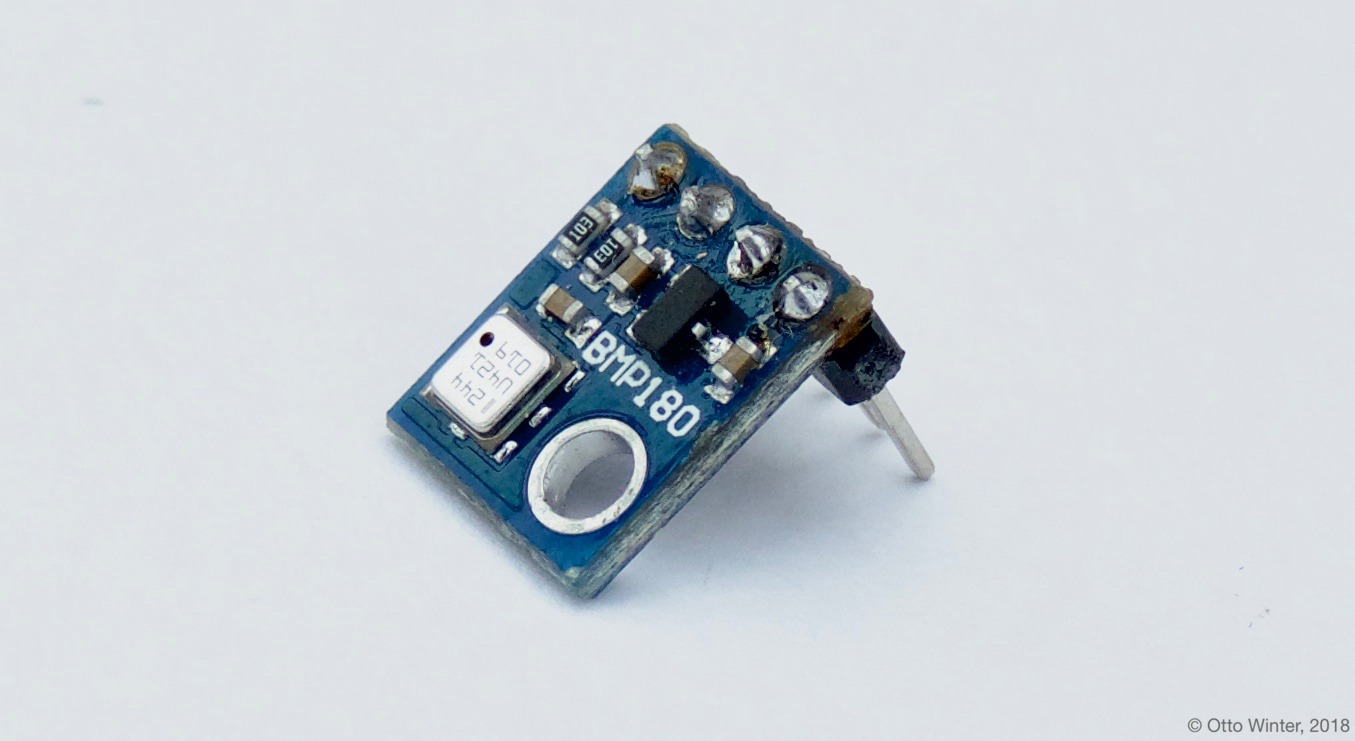

The BMP085 sensor platform allows you to use your BMP085
(datasheet
,
Adafruit) and BMP180
(datasheet,
Adafruit) temperature and
pressure sensors with ESPHome. The I²C is required to be set up in
your configuration for this sensor to work.

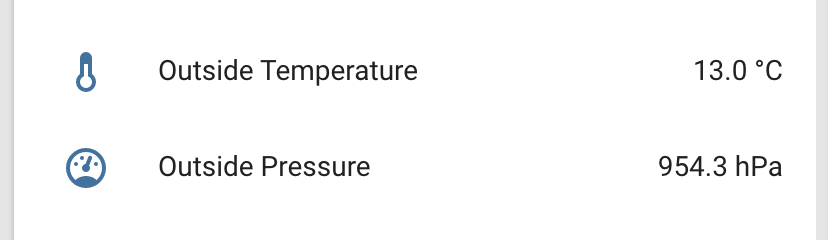

# Example configuration entry
sensor:
- platform: bmp085
temperature:
name: "Outside Temperature"
pressure:
name: "Outside Pressure"
update_interval: 60sConfiguration variables:
temperature (Optional): The information for the temperature sensor.
- All options from Sensor.
pressure (Optional): The information for the pressure sensor.
- All options from Sensor.
address (Optional, int): Manually specify the I²C address of the sensor. Defaults to
0x77.update_interval (Optional, Time): The interval to check the sensor. Defaults to
60s.
