MCP9808 Temperature Sensor

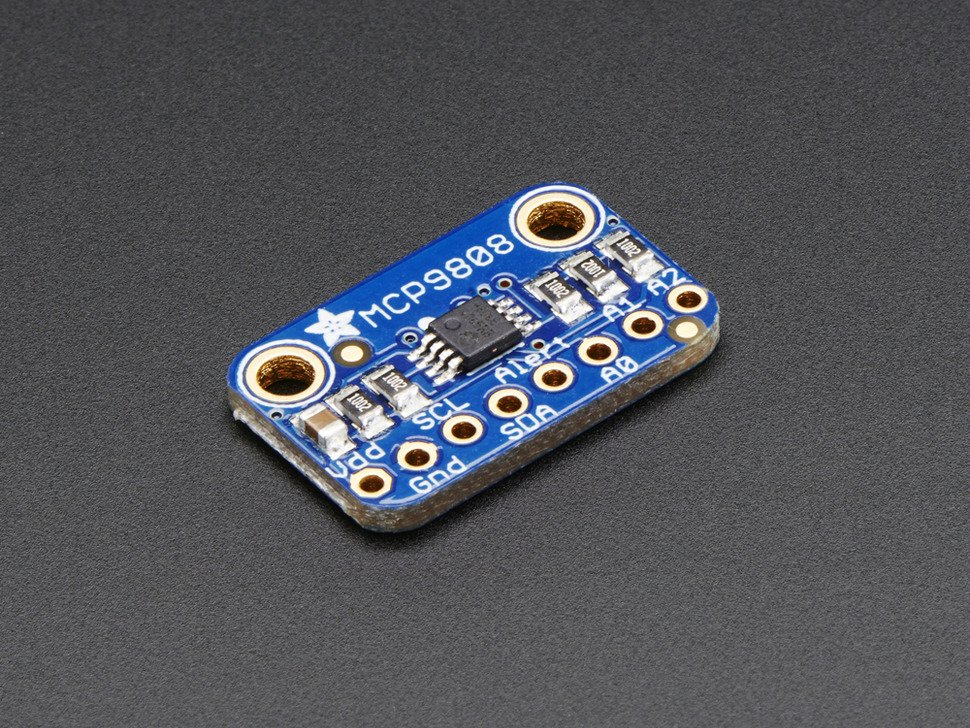

The MCP9808 Temperature sensor allows you to use your MCP9808
(datasheet
,
Adafruit) sensors with
ESPHome. The I²C Bus is
required to be set up in your configuration for this sensor to work.
# Example configuration entry
sensor:
- platform: mcp9808
name: "Living Room Temperature"
update_interval: 60sConfiguration variables:
- address (Optional, int): Manually specify the I²C address of the sensor. Defaults to
0x18. - update_interval (Optional, Time): The interval to check the sensor. Defaults to
60s. - All other options from Sensor.
