SHTCx Temperature+Humidity Sensors
The shtcx sensor platform Temperature+Humidity sensor allows you to use your Sensirion SHTC1
(datasheet
,
Sensirion STHC1) and
the newer SHTC3
(datasheet,
SparkFun_ ) sensors with
ESPHome. The I²C Bus is
required to be set up in your configuration for this sensor to work.
# Example configuration entry
sensor:
- platform: shtcx
temperature:

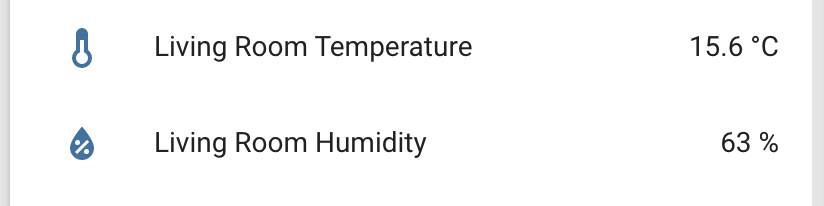

name: "Living Room Temperature"
humidity:
name: "Living Room Humidity"
address: 0x70
update_interval: 60sConfiguration variables:
temperature (Required): The information for the temperature sensor.
- All options from Sensor.
humidity (Required): The information for the humidity sensor.
- All options from Sensor.
address (Optional, int): Manually specify the I²C address of the sensor. Defaults to
0x70.update_interval (Optional, Time): The interval to check the sensor. Defaults to
60s.
