SPS30 Particulate Matter Sensor

The sps30 sensor platform allows you to use your Sensirion SPS30 (datasheet External link ) sensors with ESPHome. The I²C Bus is required to be set up in your configuration for this sensor to work. This sensor supports both UART and I²C communication. However, at the moment only I²C communication is implemented.

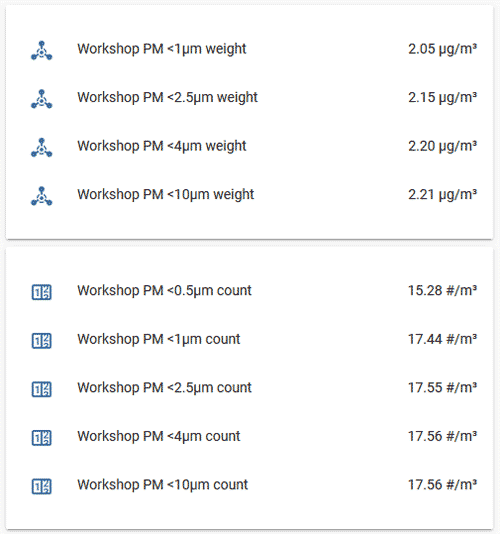

Sparkfun External link

# Example configuration entry
sensor:
  - platform: sps30
    pm_1_0:
      name: "Workshop PM <1µm Weight concentration"
      id: "workshop_PM_1_0"
    pm_2_5:
      name: "Workshop PM <2.5µm Weight concentration"
      id: "workshop_PM_2_5"
    pm_4_0:
      name: "Workshop PM <4µm Weight concentration"
      id: "workshop_PM_4_0"
    pm_10_0:
      name: "Workshop PM <10µm Weight concentration"
      id: "workshop_PM_10_0"
    pmc_0_5:
      name: "Workshop PM <0.5µm Number concentration"
      id: "workshop_PMC_0_5"
    pmc_1_0:
      name: "Workshop PM <1µm Number concentration"
      id: "workshop_PMC_1_0"
    pmc_2_5:
      name: "Workshop PM <2.5µm Number concentration"
      id: "workshop_PMC_2_5"
    pmc_4_0:
      name: "Workshop PM <4µm Number concentration"
      id: "workshop_PMC_4_0"
    pmc_10_0:
      name: "Workshop PM <10µm Number concentration"
      id: "workshop_PMC_10_0"
    pm_size:
      name: "Typical Particle size"
      id: "pm_size"
    address: 0x69
    update_interval: 10s

Configuration variables:

pm_1_0 (Optional): The information for the Weight Concentration sensor for fine particles up to 1μm. Readings in µg/m³.
- All options from Sensor.
pm_2_5 (Optional): The information for the Weight Concentration sensor for fine particles up to 2.5μm. Readings in µg/m³.
- All options from Sensor.
pm_4_0 (Optional): The information for the Weight Concentration sensor for coarse particles up to 4μm. Readings in µg/m³.
- All options from Sensor.
pm_10_0 (Optional): The information for the Weight Concentration sensor for coarse particles up to 10μm. Readings in µg/m³.
- All options from Sensor.
pmc_0_5 (Optional): The information for the Number Concentration sensor for ultrafine particles up to 0.5μm. Readings in particles/cm³.
- All options from Sensor.
pmc_1_0 (Optional): The information for the Number Concentration sensor for fine particles up to 1μm. Readings in particles/cm³.
- All options from Sensor.
pmc_2_5 (Optional): The information for the Number Concentration sensor for fine particles up to 2.5μm. Readings in particles/cm³.
- All options from Sensor.
pmc_4_0 (Optional): The information for the Number Concentration sensor for coarse particles up to 4μm. Readings in particles/cm³.
- All options from Sensor.
pmc_10_0 (Optional): The information for the Number Concentration sensor for coarse particles up to 10μm. Readings in particles/cm³.
- All options from Sensor.
pm_size (Optional): Typical particle size in μm.
- All options from Sensor.
auto_cleaning_interval (Optional): The interval in seconds of the periodic fan-cleaning.
address (Optional, int): Manually specify the I²C address of the sensor. Defaults to 0x69.
update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.

Wiring

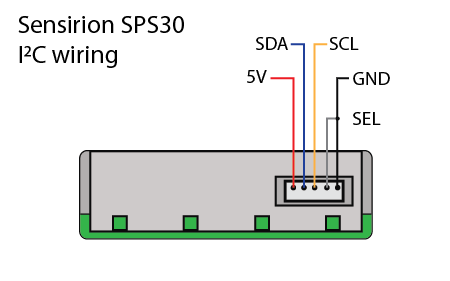

The sensor has a 5 pin JST ZHR type connector, with a 1.5mm pitch. (Matching connector housing External link , datasheet) To force the sensor into I²C mode, the SEL pin (Interface Select, pin no.4) should be shorted to ground (pin no.5)

For better stability, the SDA and SCL lines require suitable pull-up resistors. Sensirion shows 10 kΩ resistors between VDD (5V, pin no.1) and SDA (pin no.2) and SCL (pin no.3) in the manual.

Automatic Cleaning

The SPS30 sensor has an automatic fan-cleaning which will accelerate the built-in fan to maximum speed for 10 seconds in order to blow out the dust accumulated inside the fan. The default automatic-cleaning interval is 168 hours (1 week) of uninterrupted use. Switching off the sensor resets this time counter. Disabling of automatic-cleaning or setting a manual interval is not supported at the moment.

Manual Cleaning

This action manually starts fan-cleaning.

on_...:
  then:
    - sps30.start_fan_autoclean: my_sps30

To be able to trigger the fan cleaning feature from Home Assistant, add a button as shown below, and trigger it with a (periodic) automation.

button:
  - platform: template
    name: "SPS30 fan clean"
    on_press:
      then:
        - sps30.start_fan_autoclean: my_sps30

sensor:
  - platform: sps30
    id: "my_sps30"
    ...

Sensirion recommends cleaning at least once per week.
