Ultrasonic Distance Sensor

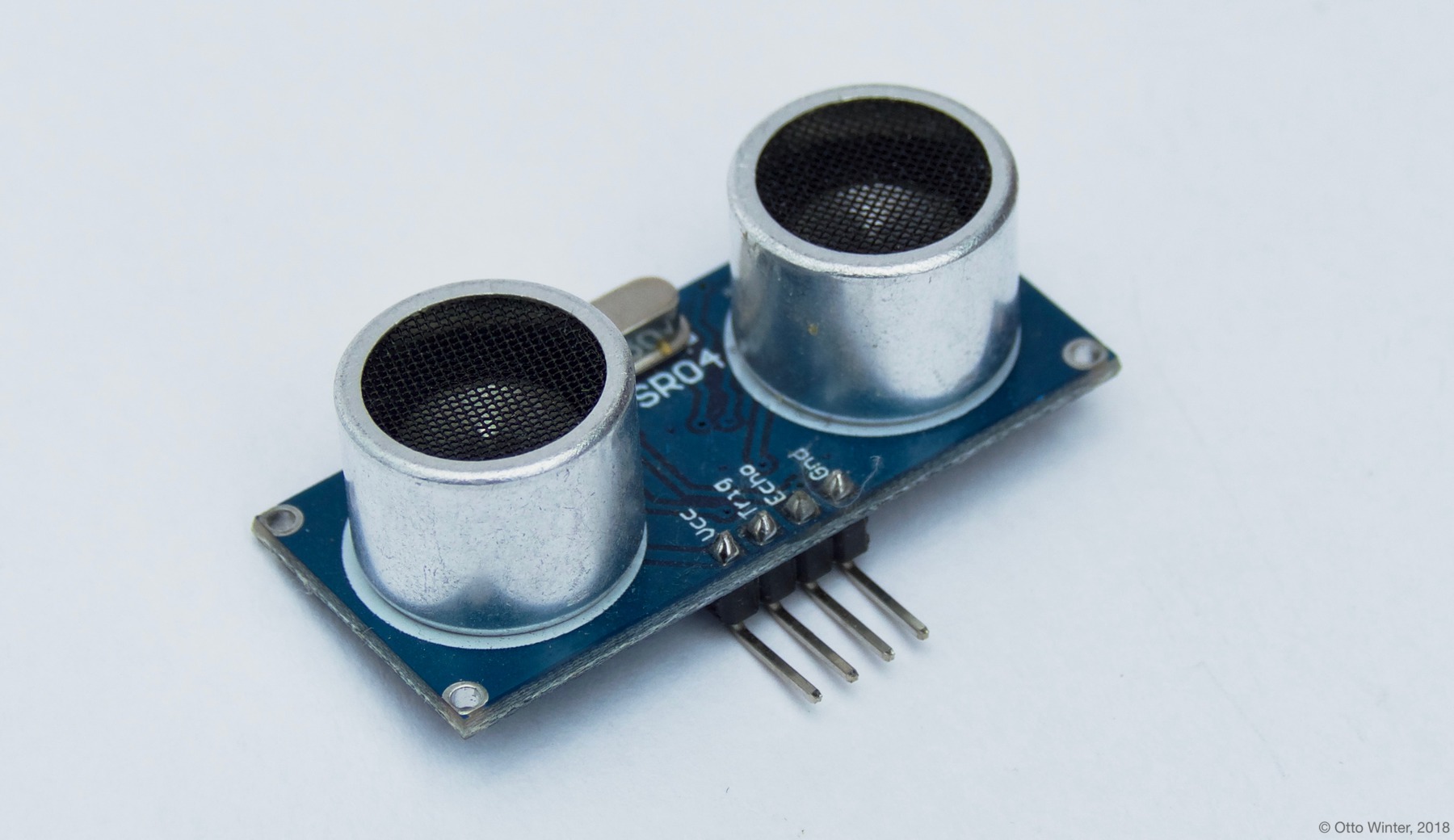

The ultrasonic distance sensor allows you to use simple ultrasonic
sensors like the HC-SR04
(datasheet
,
SparkFun) with ESPHome
to measure distances. These sensors usually can’t measure anything more
than about two meters and may sometimes make some annoying clicking
sounds.
This sensor platform expects a sensor that can be sent a trigger pulse on a specific pin and will send out an echo pulse once a measurement has been taken. Because sometimes (for example if no object is detected) the echo pulse is never returned, this sensor also has a timeout option which specifies how long to wait for values.
# Example configuration entry
sensor:
- platform: ultrasonic
trigger_pin: D1
echo_pin: D2

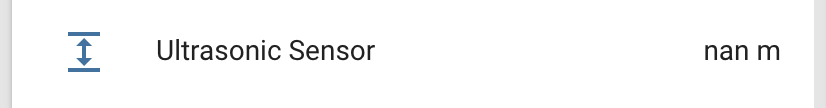

name: "Ultrasonic Sensor"Configuration variables:
- trigger_pin (Required, Pin Schema): The output pin to periodically send the trigger pulse to.
- echo_pin (Required, Pin Schema): The input pin on which to wait for the echo.
- update_interval (Optional, Time): The interval to check the
sensor. Defaults to
60s. - All other options from Sensor.
Advanced options:
- timeout (Optional, float): The number of meters for the timeout. Most sensors can only sense up to 2 meters. Defaults to 2 meters.
- pulse_time (Optional, Time): The duration for which the trigger pin will be
active. Defaults to
10us. - id (Optional, ID): Manually specify the ID used for code generation.
