ZyAura CO2 & Temperature & Humidity Sensor

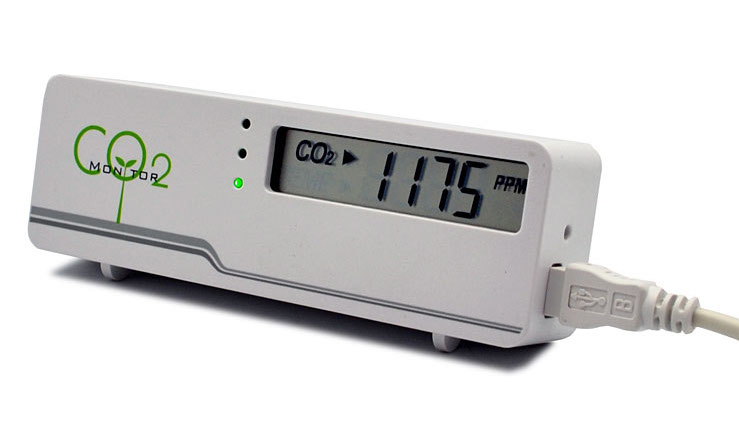

The ZyAura CO2 & Temperature & Humidity sensor allows you to use your ZGm05(3)(U) (MT8057, MT8057S), ZG1683R(U) (MT8060), ZG1583RUD monitors with ESPHome.

# Example configuration entry
sensor:
  - platform: zyaura
    clock_pin: D1
    data_pin: D2
    co2:
      name: "ZyAura CO2"
    temperature:
      name: "ZyAura Temperature"
    humidity:
      name: "ZyAura Humidity"

Configuration variables:

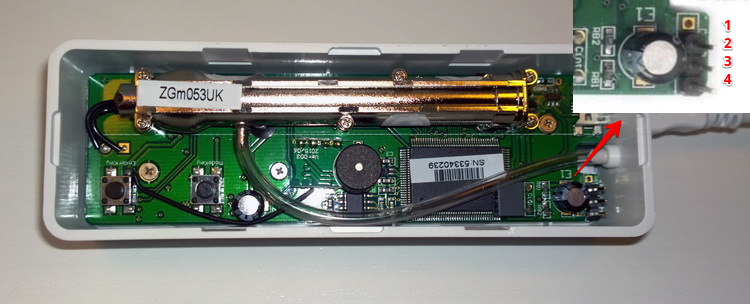

• clock_pin (Required, Pin): The pin where the clock bus is connected.

• data_pin (Required, Pin): The pin where the data bus is connected.

• co2 (Optional): The information for the CO2 sensor.

  • All options from Sensor.

• temperature (Optional): The information for the temperature sensor.

  • All options from Sensor.

• humidity (Optional): The information for the humidity sensor

  • All options from Sensor.

• update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.
