TM1651 Battery Display

Battery Display

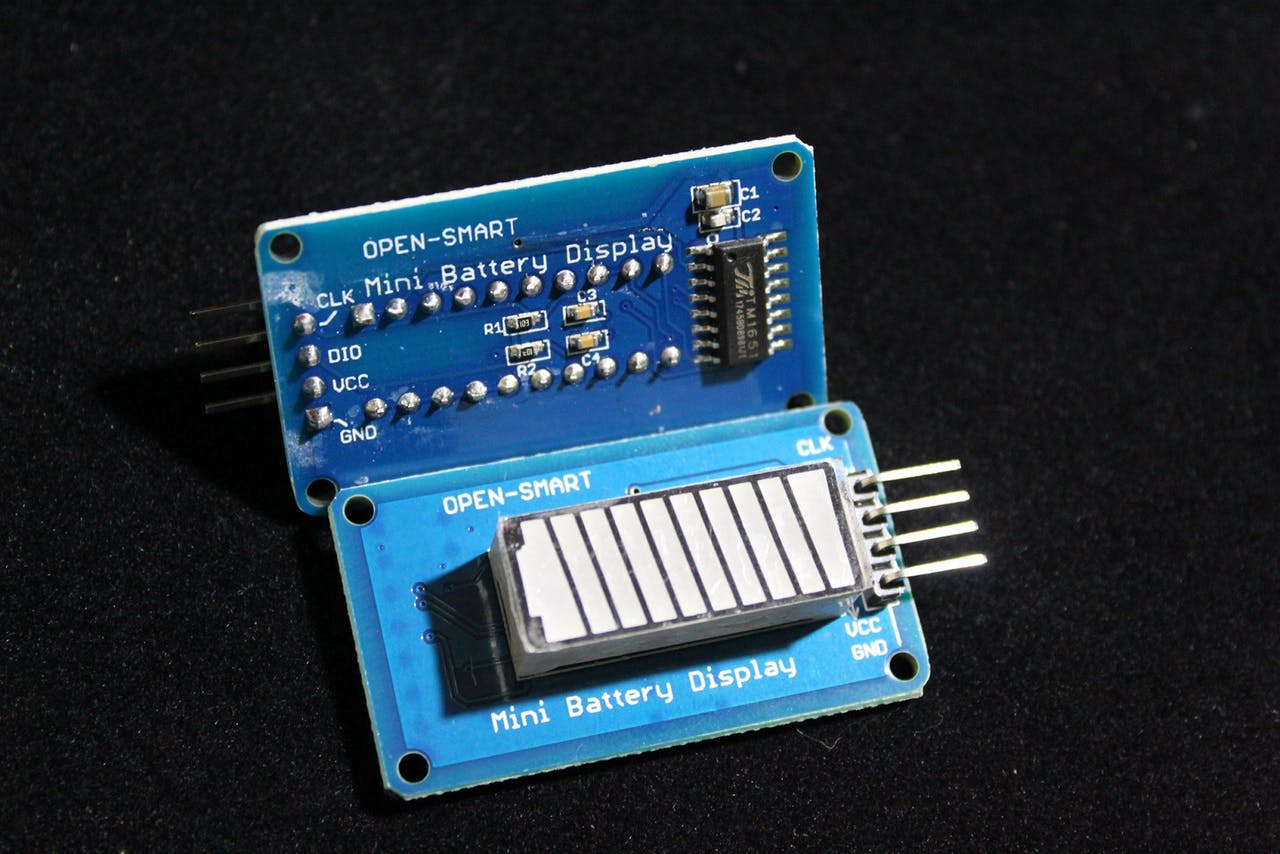

The tm1651 display platform allows you to use battery display units based on the TM1651 chip such as this one External link with ESPHome. This component supports the level and brightness settings. All updates can be made via lambda expressions.

tm1651:
    id: tm1651_battery
    clk_pin: GPIOXX
    dio_pin: GPIOXX

Configuration variables:

clk_pin (Required, Pin Schema): CLK pin
dio_pin (Required, Pin Schema): DIO pin
id (Optional, ID): Manually specify the ID used for code generation.

`tm1651.set_level_percent` Action

This Action changes the level of the battery display at runtime. Automatically calculates input level in percentages to actual level for the display.

on_...:
  - tm1651.set_level_percent:
      id: tm1651_battery
      level_percent: 50

Configuration variables:

id (Required, ID): The ID of the TM1651.
level_percent (Required, templatable, int): Level from 0 to 100

`tm1651.set_level` Action

This Action changes the level of the battery display at runtime.

on_...:
  - tm1651.set_level:
      id: tm1651_battery
      level: 5

Configuration variables:

id (Required, ID): The ID of the TM1651.
level (Required, templatable, int): Level from 0 to 7

`tm1651.set_brightness` Action

This Action allows you to manually change the brightness of the battery display at runtime.

on_...:
  - tm1651.set_brightness:
      id: tm1651_battery
      brightness: 1

Configuration variables:

id (Required, ID): The ID of the TM1651.
brightness (Required, templatable, int): There is three levels of brightness (1, 2 or 3) from lowest to highest brightness.

`tm1651.turn_off` Action

This Action turns off all the LEDs.

on_...:
  - tm1651.turn_off:
      id: tm1651_battery

Configuration variables:

id (Required, ID): The ID of the TM1651.

`tm1651.turn_on` Action

This Action turns on the LEDs.

on_...:
  - tm1651.turn_on:
      id: tm1651_battery

Configuration variables:

id (Required, ID): The ID of the TM1651.

Advanced Configuration

You also can control this component with lambda expressions

api:
  actions:
    - action: battery_level
      variables:
        level: int
      then:
        - lambda: |-
            id(tm1651_battery).set_level(level);
    - action: battery_brightness
      variables:
        brightness: int
      then:
        - lambda: |-
            id(tm1651_battery).set_brightness(brightness);
